當前所在位置：Home > Products > UHF/VHF Antenna > 433MHz Antenna
433MHz Antenna

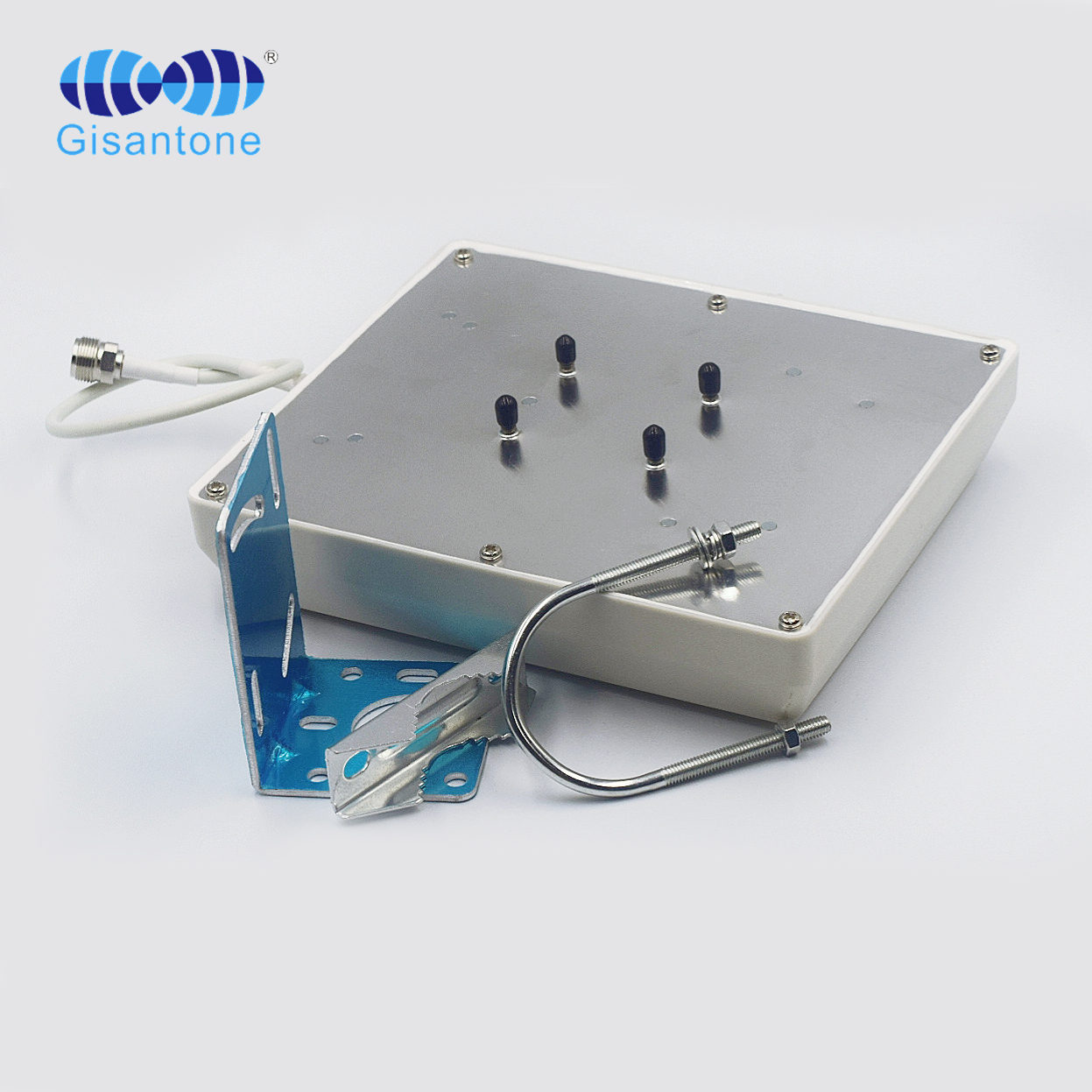

433MHz 7DBI panel antenna N-K port
  • 名稱：

    433MHz 7DBI panel antenna N-K port

  • 型號：

    G11510A

  • 頻率：

    433±5MHz

  • 增益：

    7DBI

  • 線長：

    30CM RG58U

  • 接頭：

    N female

分享到：
產品參數
生產照片
文件下載

Electrical Specifications

Model No.

G11510A

Frequency Range

433±5MHz

Gain

7Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

Vertical

Front to Back Ratio

≥23dB

Horizontal Half Power Angle

78°±2

Vertical Half Power Angle

68°±2

Max Input Power

100W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

N-K

Cable Type

RG58/U

Cable Length

30CM

Working Temperature

-40℃~﹢65℃

Antenna Weight

0.75kg

Pole Diameter

Φ35~φ55mm

Size

210*180*45mm

Rated Wind Velocity

210km/h

Antenna cover material

ABS

Package

52*34*22CM/10pcs

Package Weight

5.5KG
