- Name：

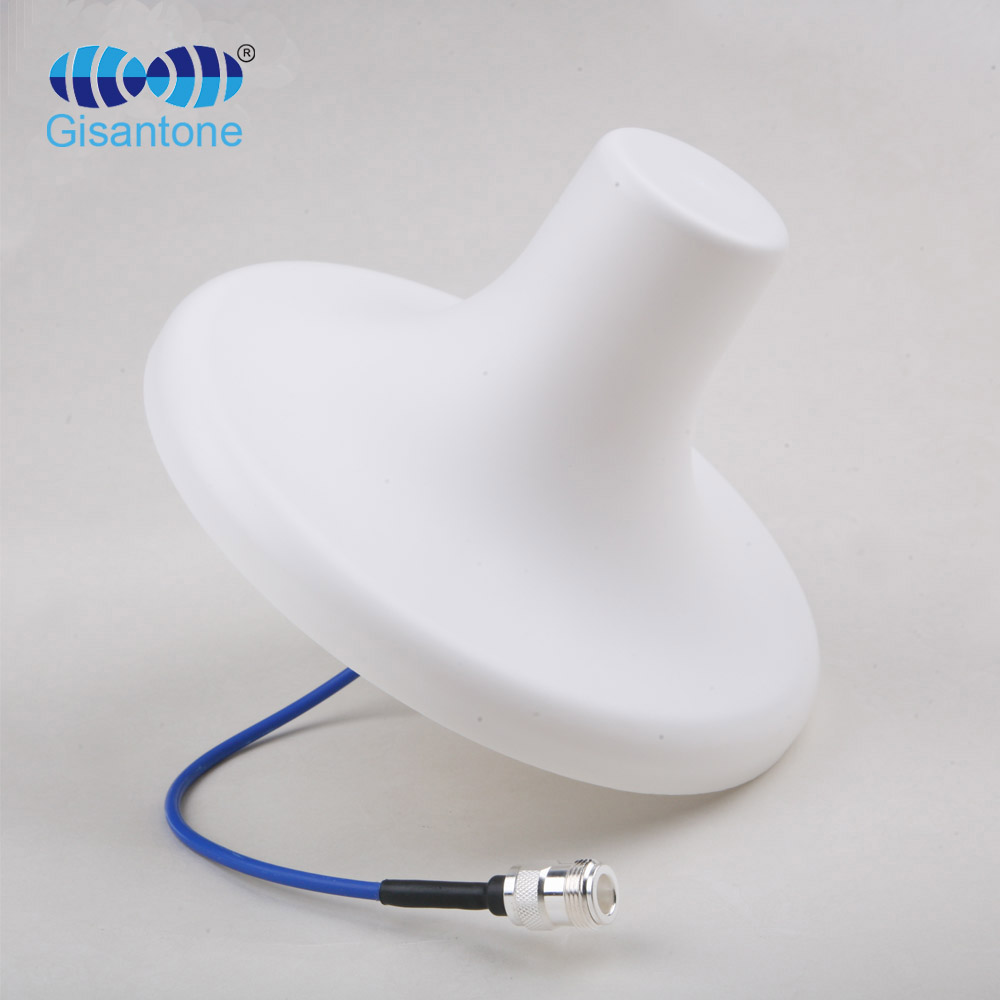

698/2700MHz 2/5DBI Ceiling Antenna
- Model No.：
G15603A
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
2/5DBI
- Cable Length：
40CM RG141

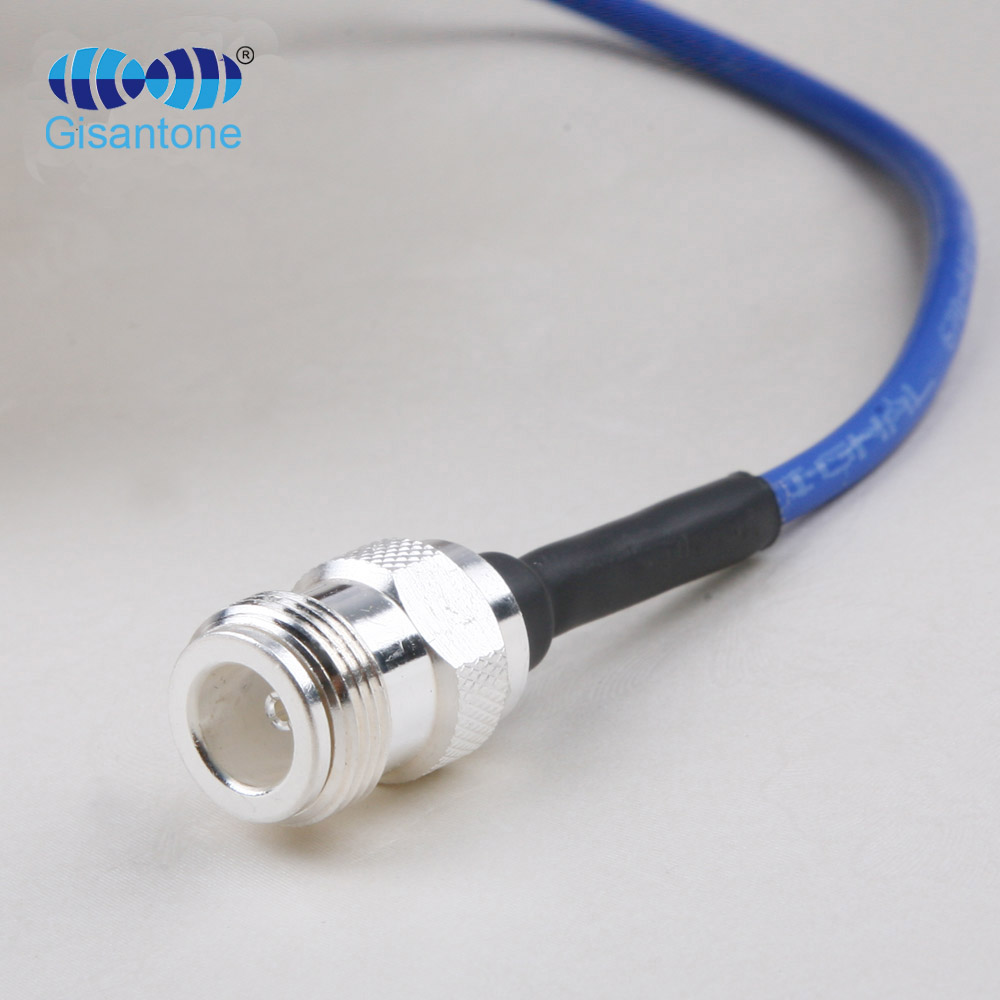

- Connector：
N female
|
Electrical Specifications |
||
|
Model NO. |
G15603A |
|
|
Frequency Range |
698-960/1710-2700MHz |
|
|
Gain |
2DBI |
5DBI |
|
VSWR |
≤2.0 |
≤1.5 |
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
100° |
50° |
|
PIMD 3th |
≤-107dBm（@2W） |
|
|
Max Input Power |
100W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
N-K |
|
|
Cable Type |
RG141 Blue |
|
|
Cable Length |
40CM |
|
|
Working Temperature |
-30℃~﹢45℃ |
|
|
Antenna Weight |
350g |
|
|
Size |
Φ204x115mm |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
White |
|
|

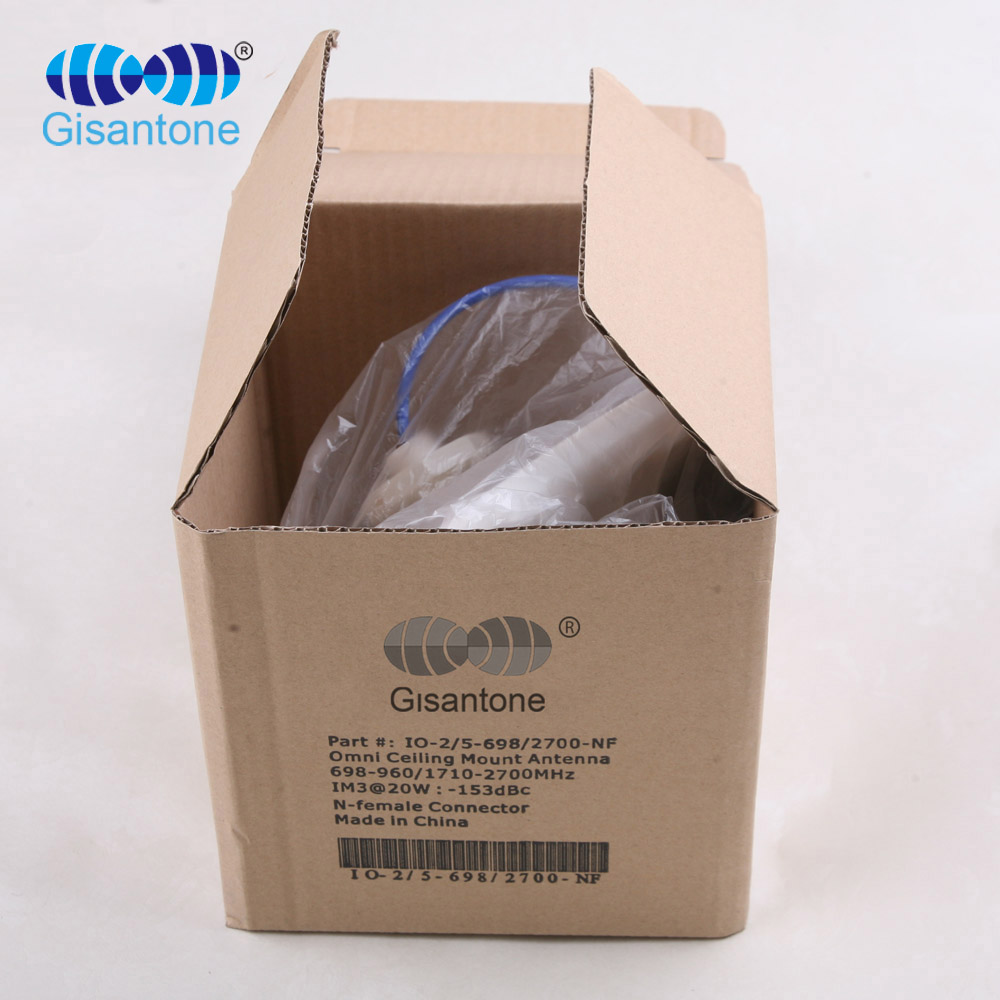

Package Size |
90*38*38 / 20pcs |
|
|
Weight |
8.5KG |
|
