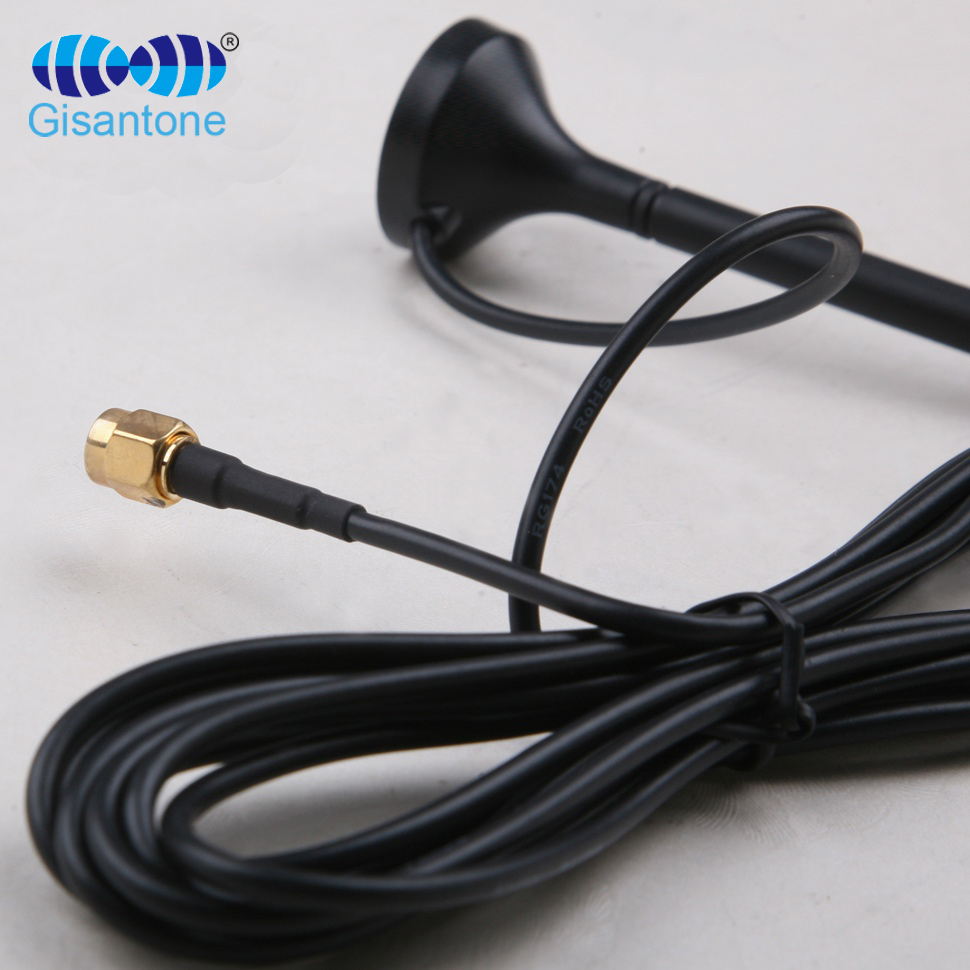

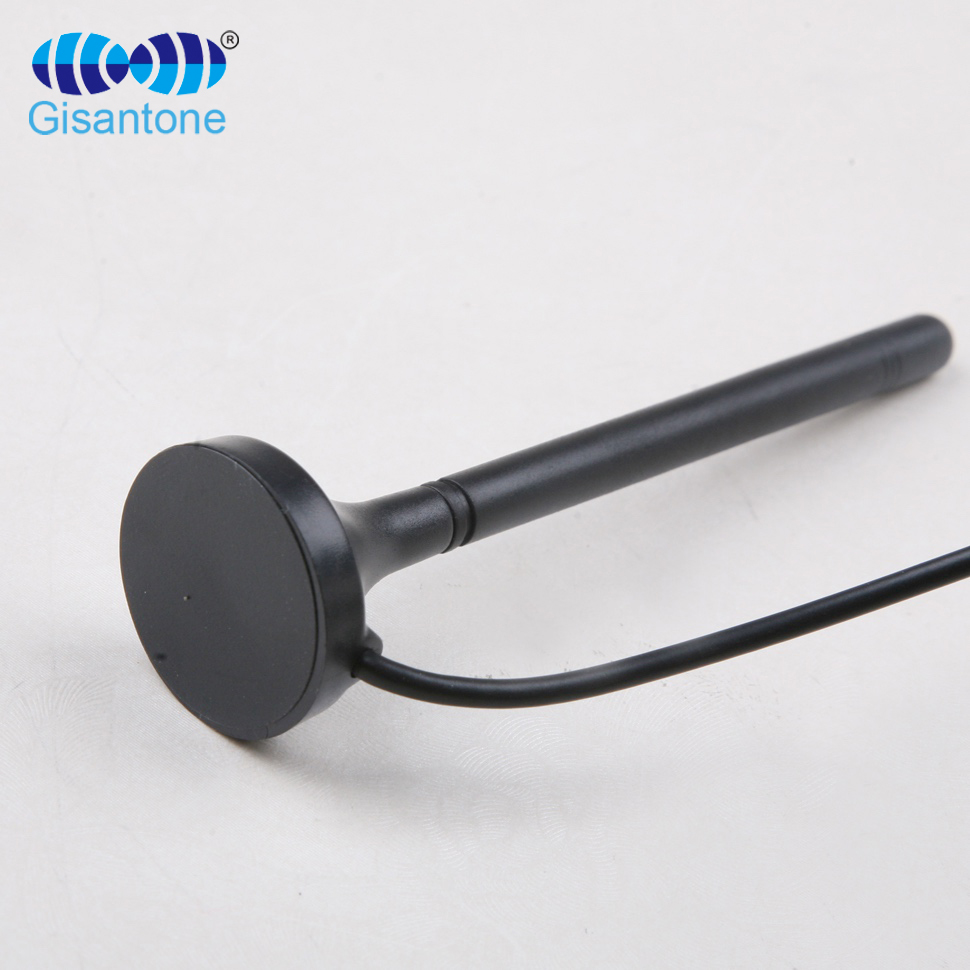

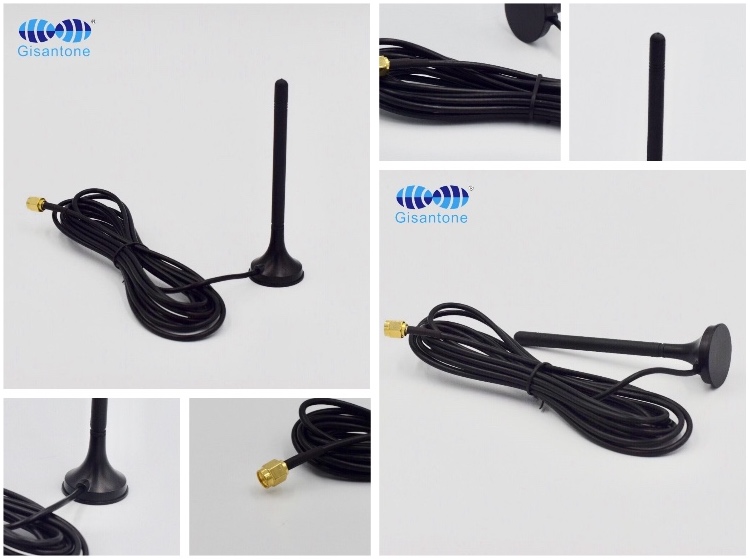

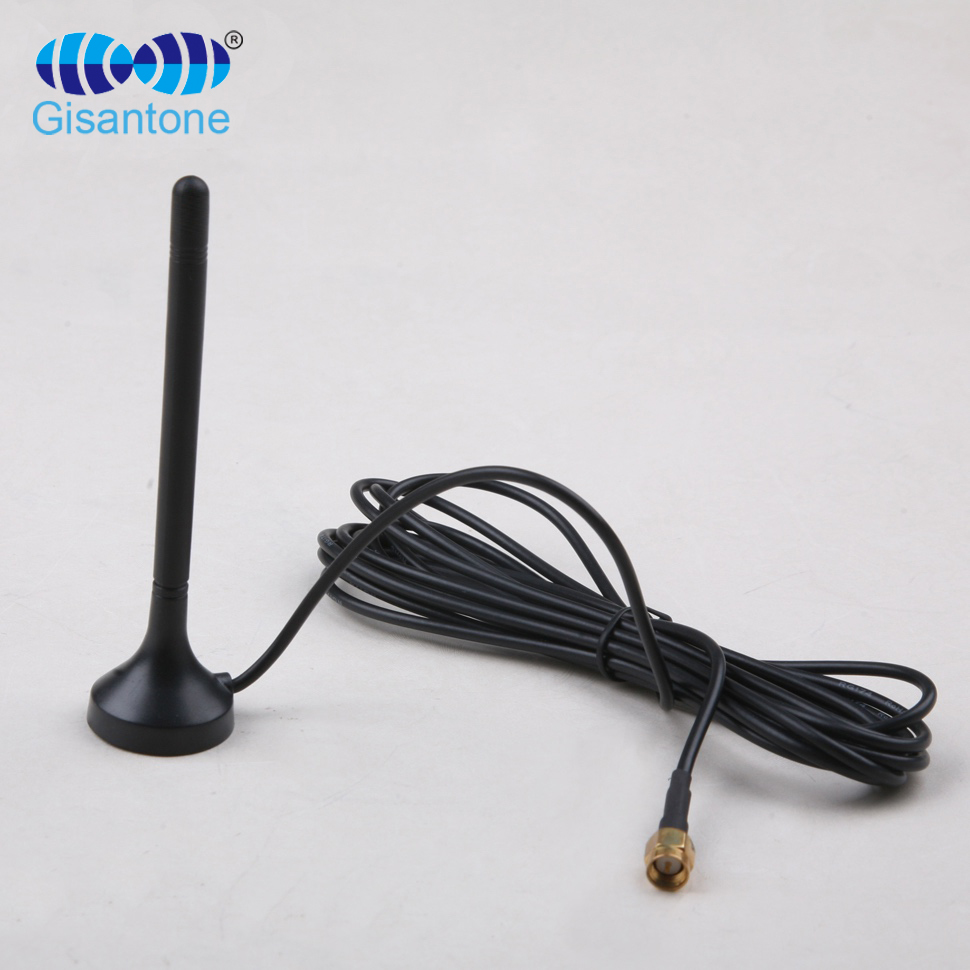

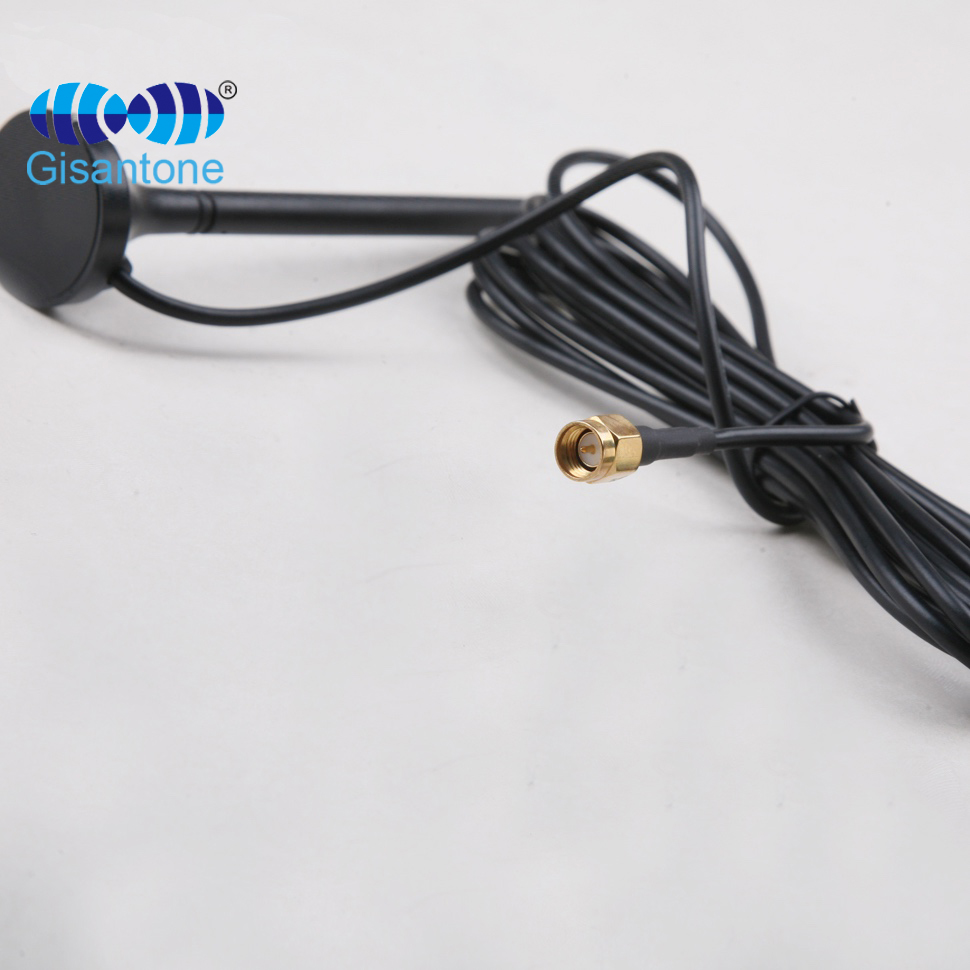

- Name：
870-960/1710-1880MHz Magnetic antenna
- Model No.：
G15331E
- Frequency Range ：
870-960/1710-1880MHz
- Gain：
2-3DBI
- Cable Length：
3M RG174
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model No. |
G15331E |
|
Frequency Range |
870-960/1710-1880MHz |
|
Gain |
2-3dBi |
|
VSWR |
≤2.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
70° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Connector Type |
SMA-J |
|
Cable Type |
RG174 Black |
|
Cable Length |
3m |
|
Antenna Weight |
50g |
|
Size |
Φ29x(107±5)mm |
|
Mounting |
Magnetic Base |
|
Color |
Black |
|
Package Size |
50*43*30CM/400pcs |
|
Weight |
20KG |
