GSM Terminal Antenna

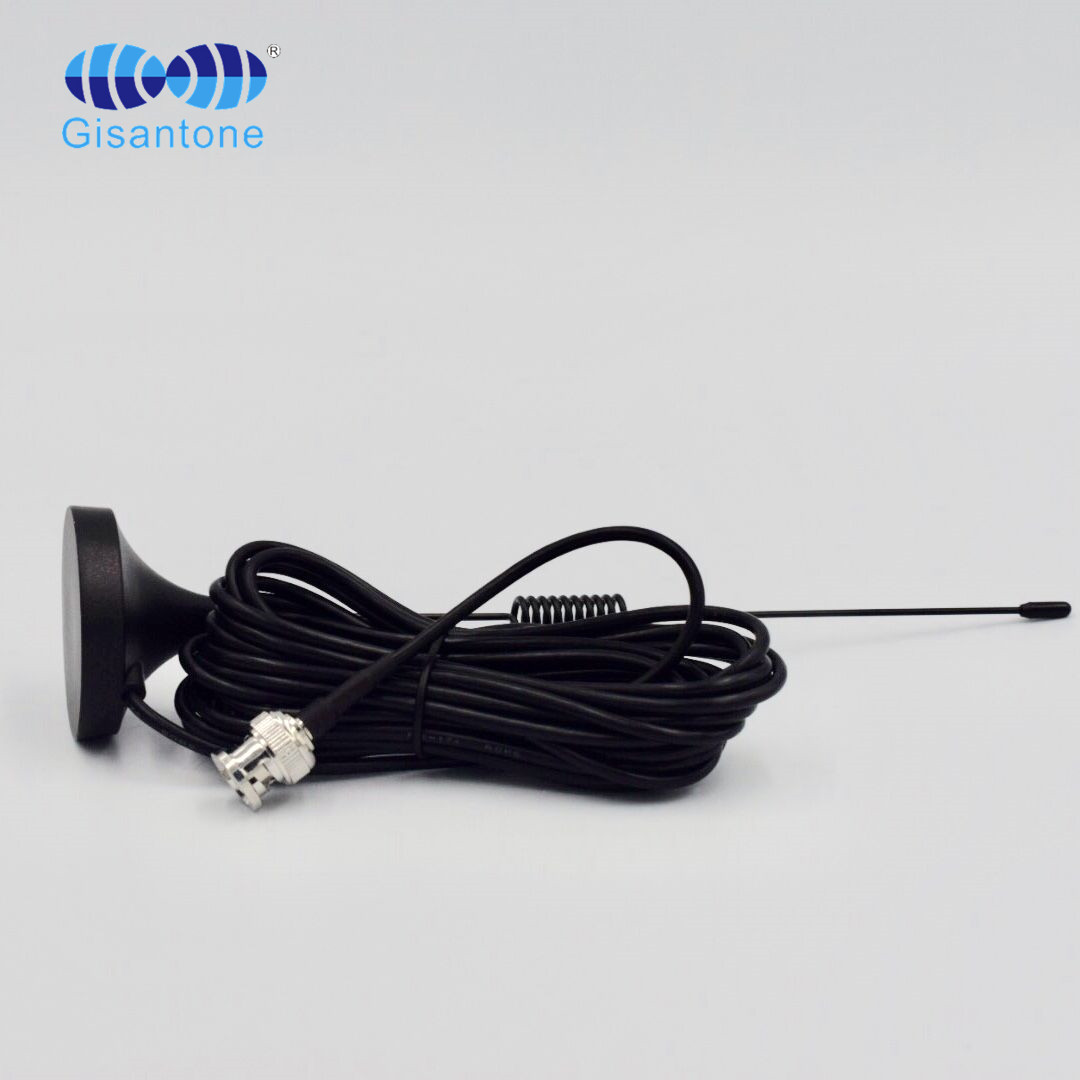

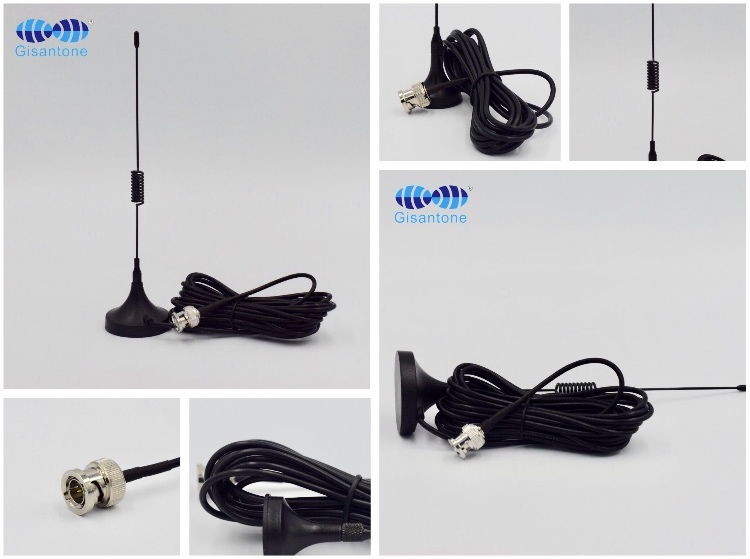

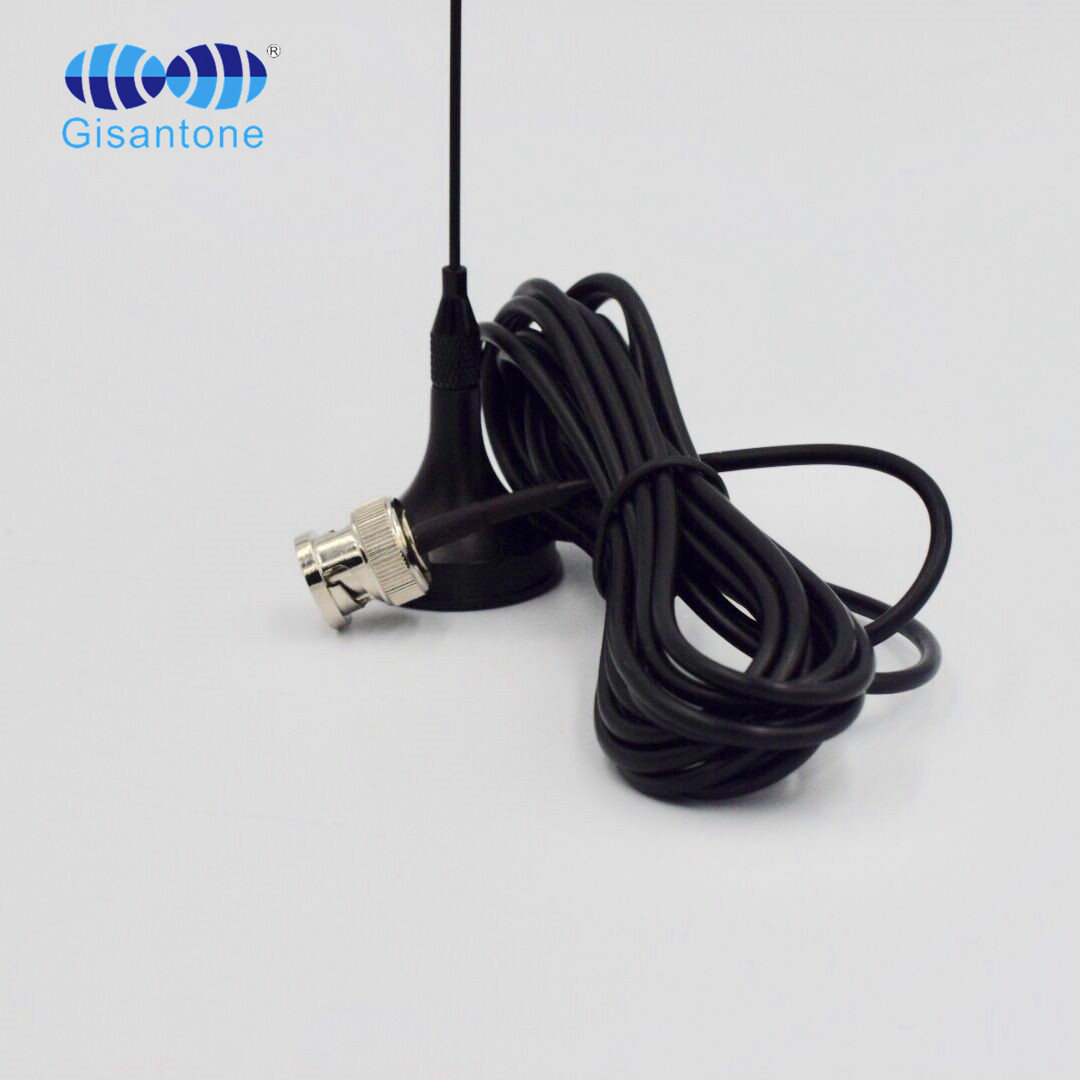

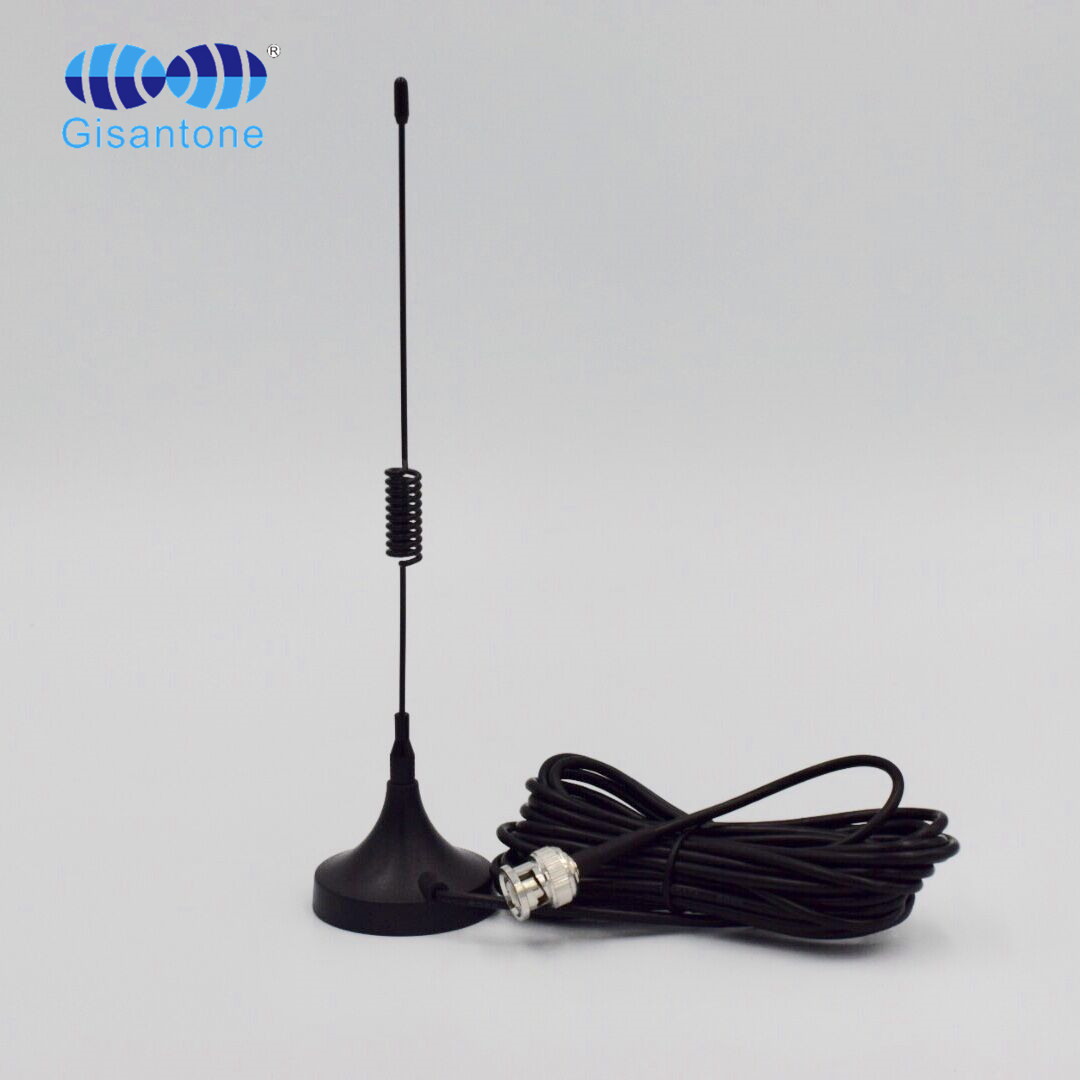

806-960MHz 3DBI Magnetic Antenna
  • Name：

    806-960MHz 3DBI Magnetic Antenna

  • Model No.：

    G15327J

  • Frequency Range ：

    806-960MHz

  • Gain：

    3DBI

  • Cable Length：

    5M RG174

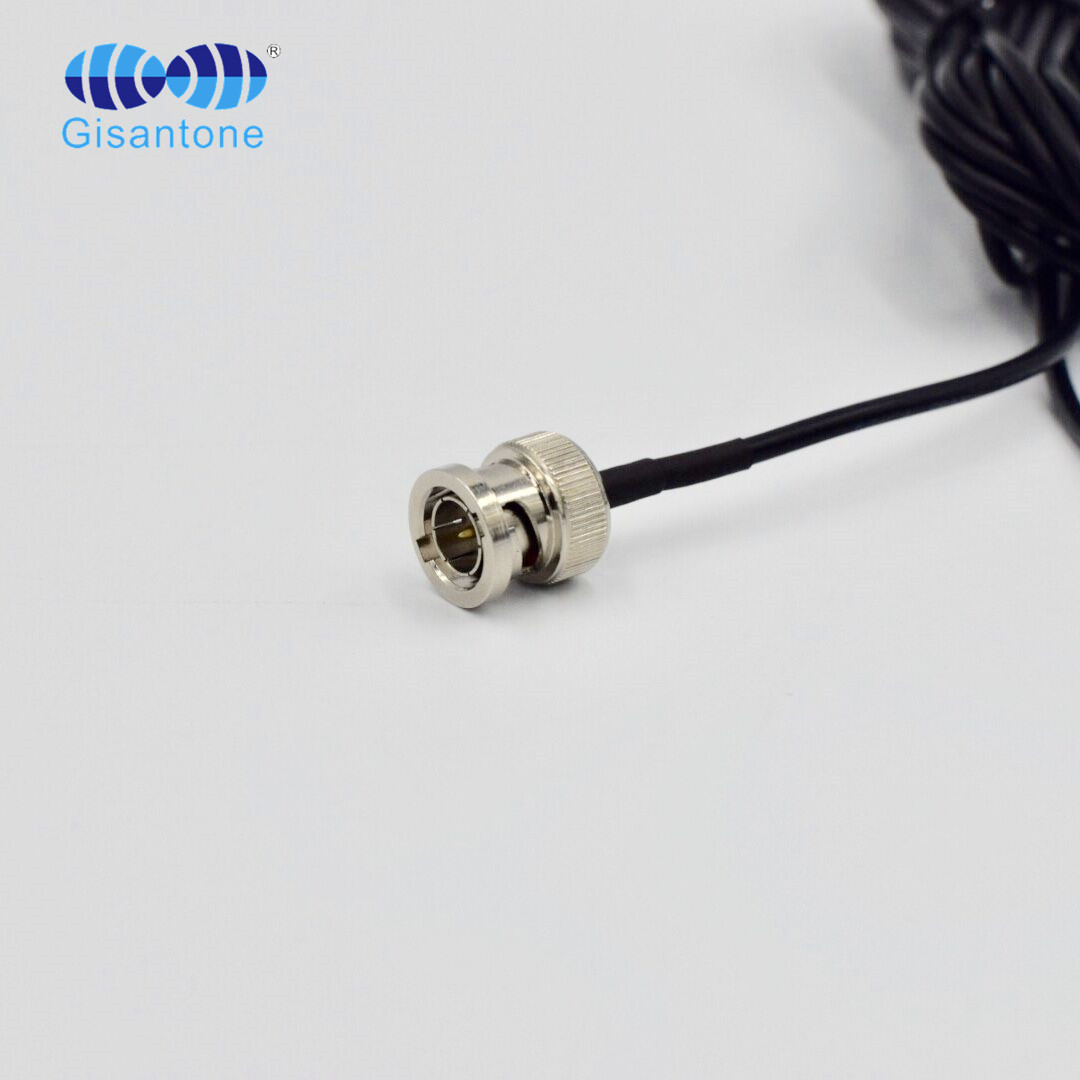

  • Connector：

    BNC male

Share：
Product parameters
Download

Electrical Specifications

Model No.

G15327J

Frequency Range

806-960MHz

Gain

3Dbi

VSWR

≤2.5

Input Impedance

50Ω

Polarization

Vertical

Horizontal Half Power Angle

360°

Vertical Half Power Angle

80°

Max Input Power

50W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

BNC male

Cable Type

RG174 Black

Cable Length

5.0±0.02M

Working Temperature

-40℃~﹢65℃

Antenna Weight

80g

Size

Φ45*(200±3) (mm)

Mounting

Magnetic Base

Color

Black
