2.4G WI-FI/WIMAX Antenna

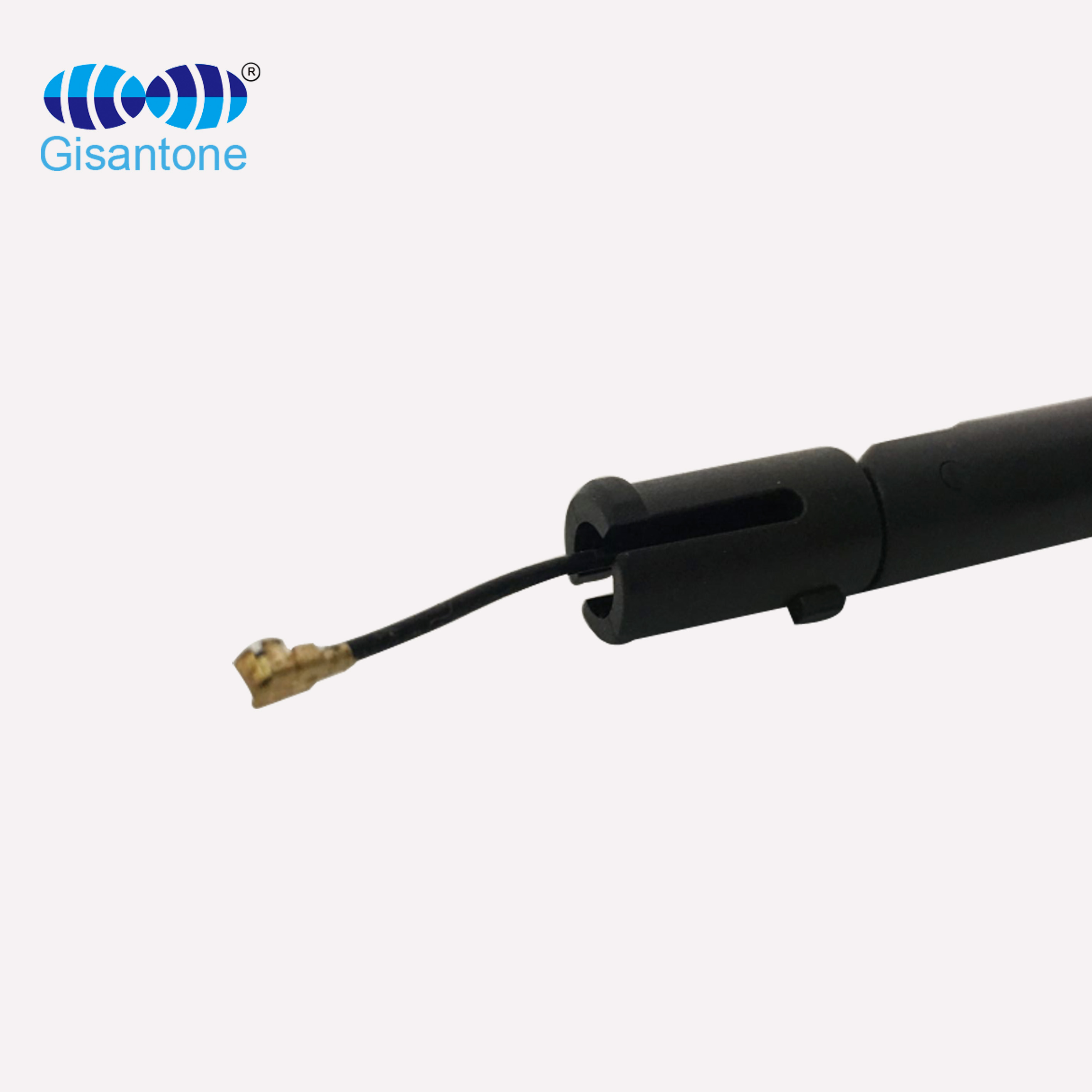

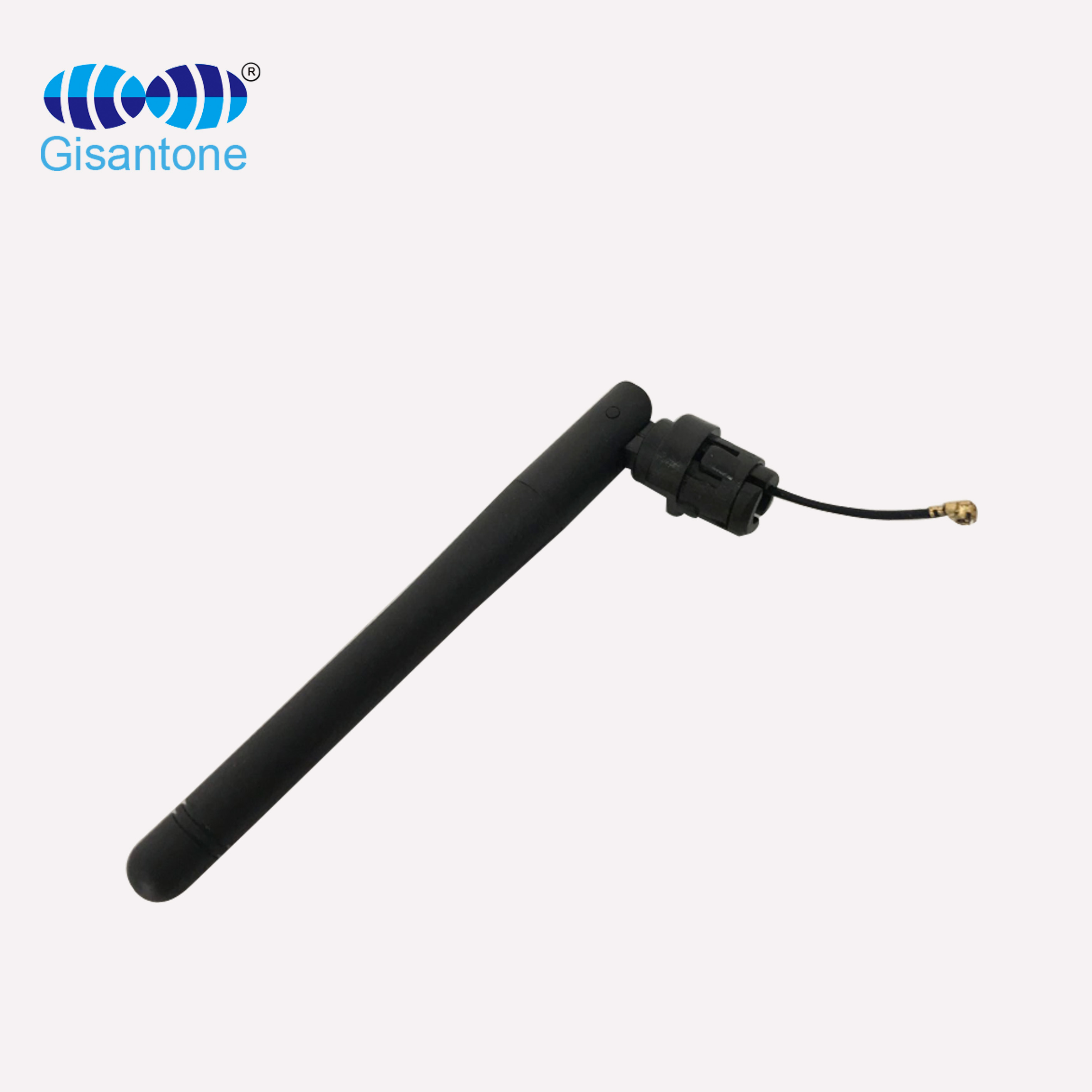

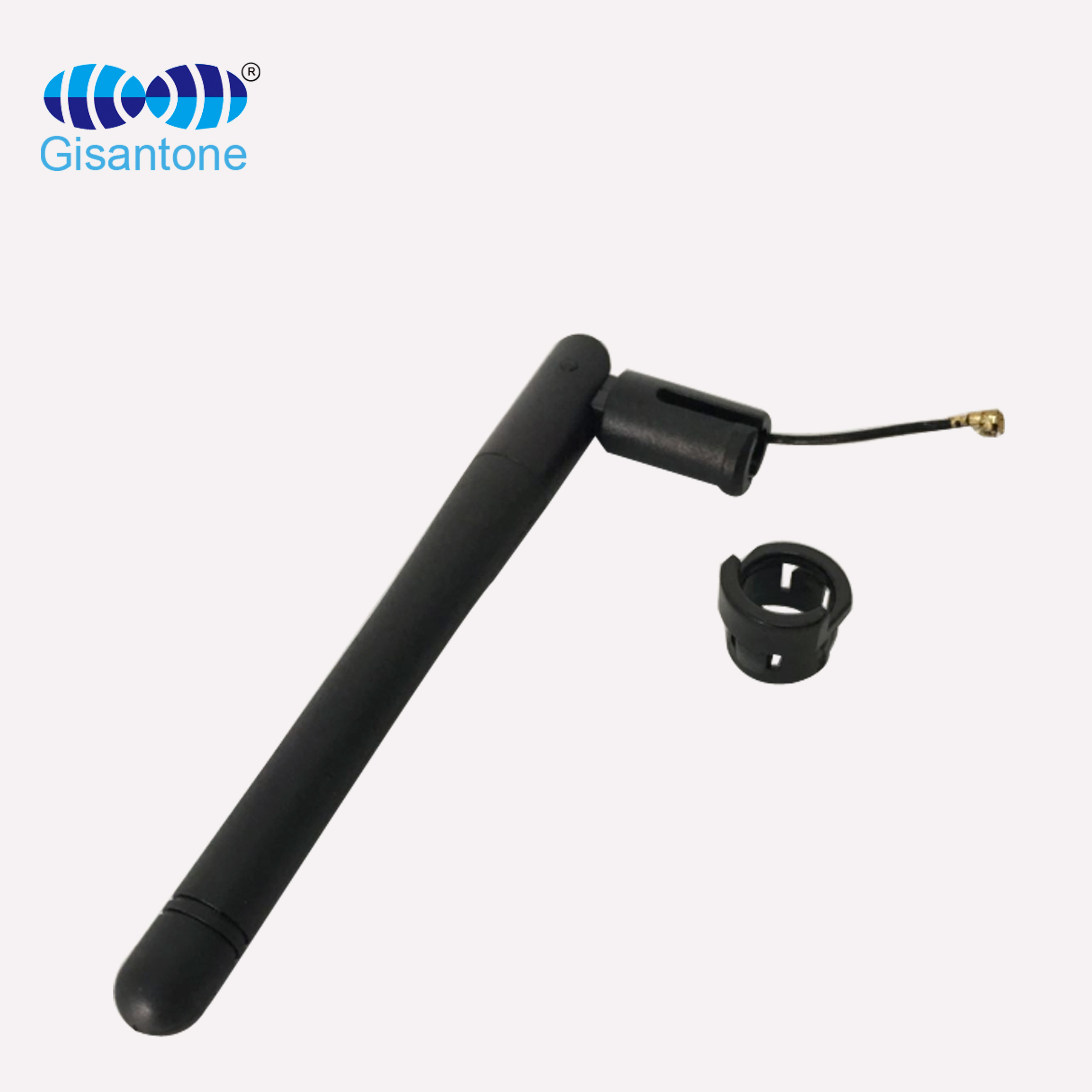

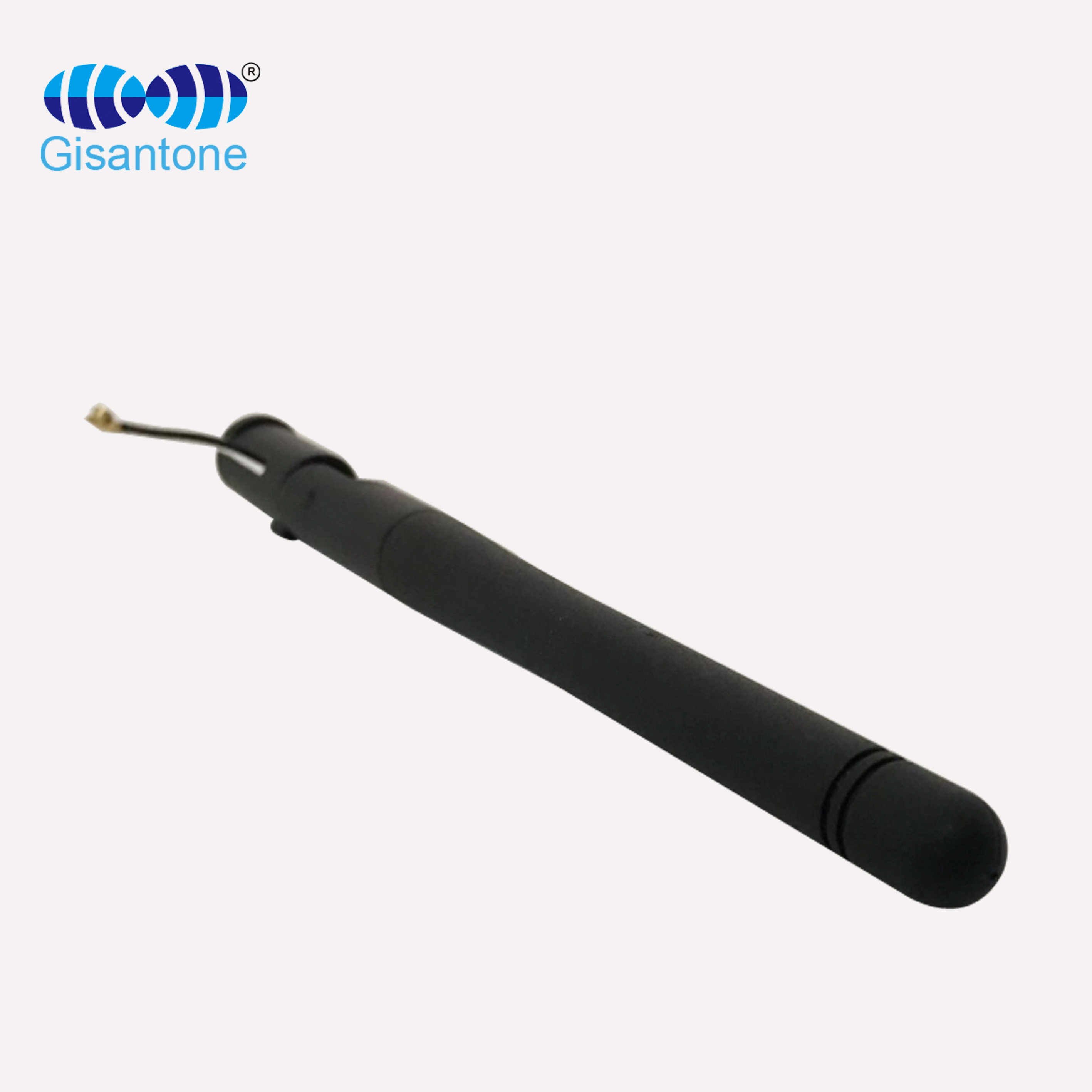

2.4G antenna with ipex connector
  • Name：

    2.4G antenna with ipex connector

  • Model No.：

    G15544B

  • Frequency Range ：

    2400-2500MHz

  • Gain：

    2.15DBI

  • Cable Length：

    20CM 1.13 cable

  • Connector：

    UFL

Share：
Product parameters
Download

Electrical Specifications

Model No.

G15544B

Frequency Range

2400-2500MHz

Gain

2.15Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

Vertical

Horizontal Half Power Angle

360°

Max Input Power

50W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

UFL

Cable Type

1.13

Cable Length

20CM

Working Temperature

-40℃~﹢65℃

Antenna Weight

20g

Size

Φ10 x (105±5) (mm)

Antenna color

Black
